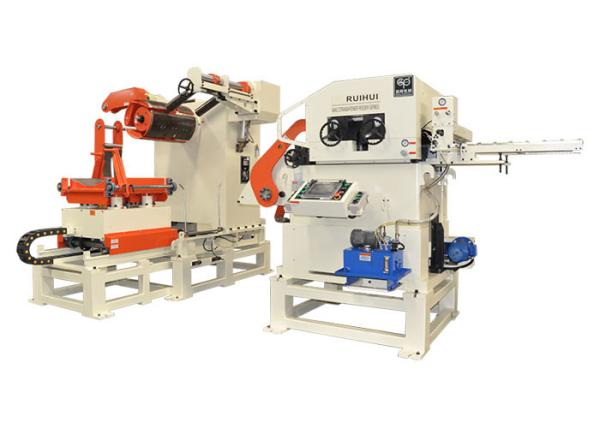

Numerical 220V 16m/Min Decoiler Straightener Feeder

Name: Numerical 220V 16mMin Decoiler Straightener Feeder
Brand: RUIHUI
Price: 1 USD

China Numerical 220V 16m/Min Decoiler Straightener Feeder wholesale

Brand Name : RUIHUI

Model Number : MAC3-600

Certification : CE, ISO certification

Place of Origin : Guangdong, China

MOQ : 1

Payment Terms : L/C, D/A, D/P

Supply Ability : 10 Sets Per Month

Delivery Time : 30 work days

Packaging Details : Wooden Box or Vacuum Packing

Stock Width(mm) : 50~600

Stock Thickness(mm) : 0.3-4.5

Line Speed(m/min) : 16~24

Coil Weight(Kg) : 5000

Work Roll Number(Pcs) : upper 4/lower 3

Main Motor(Kw) : AC 2.2The material rack part of NC three-in-one feeder of punch press is used to fix the material roll on the telescopic part of the main shaft of the material rack. When in use, the main shaft of the material rack rotates intermittently to realize uncoili

Warranty Period : 12 Months

Voltage : 3 Phase 220V/380V/50HZ

Type : Straightener Feeder & Uncoiler

Contact Now

Numerical Control 3in1 Decoiler Staightener Roll Feeder - For Die Press Stamping Production

The material rack part of NC three-in-one feeder of punch press is used to fix the material roll on the telescopic part of the main shaft of the material rack. When in use, the main shaft of the material rack rotates intermittently to realize uncoiling. The appearance of the material rack of the three-in-one feeder is similar to that of the hydraulic heavy material rack, but it is not a simple modification of the hydraulic heavy material rack, but a redesign and manufacture from the aspects of structure, material selection and processing technology.

Numerical 220V 16m/Min Decoiler Straightener Feeder

Model	MAC3-400	MAC3-600	MAC3-800		MAC3-1000
Stock Width(mm)	50~400	50~600	70~800		70~1000
Stock Thickness(mm)	0.3~4.5	0.3~4.5	0.3~4.5		0.3~4.5
Max.Coil Weight(kg)	5000	5000	5000	7000	7000
Max.Coil O.D.(mm)	Φ1400	Φ1400	Φ1400		Φ1400
Coil I.D.(mm)	Φ508	Φ508	Φ508		Φ508
Feed Length(mm)	~500*	~500*	~500*		~500*
Max.Line Speed(m/min)	16~24	16~24	16~24		16~24
Work Roll Number(piece)	up 4 / down 3	up 4 / down 3	up 4 / down 3		up 4 / down 3
Feed Roll number(set)	1	1	1		1
Main Motor	AC4.4	AC4.4	AC5.5		C7.5
Mandrel Expansion	hydraulic	hydraulic	hydraulic		hydraulic
Reel Motor(kw)	2.2	2.2	2.2	3.7	3.7
Power(v)	3 Phase 220V/380V/50HZ
Operating Air(Mpa)	0.49	0.49	0.49		0.49

Straightening Performance:

Model		MAC3-400	MAC3-600	MAC3-800	MAC3-1000
Stock Thickness (mm)	0.3~0.8	400	600	800	1000
	1.0			800	750
	1.2			700	600
	1.6		590	480	430
	1.8		500	420	380
	2.0		430	370	330
	2.3		360	320	290
	2.8	370	290	250	230
	3.2	300	250	220	200
	4.5	160	160	150	110

*The avove flgures are the material having yield strength of 245N/mm² max.

RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less.

FAQ:

Q1:What kinds of machines do you have?

Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

Feeder,Transfer systems,Press Feeding Line., etc

Q2:Is your equipment standard or customized?

Both, we can OEM & ODM with customers.

Q3:What are your equipments certification?

All our items are coming with CE certifications.

Q4:How did your company's quality system work?

“QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

cheapest. But we can provide you excellent products to defeat your competitors.

Q5:How long is the warranty period of the machine?

We offer free service with a warranty period of one year, If it is operate in reasonable, the

machine can be used more than 10 years.

Q6: Is it possible to be a foreign agent and distributor?

If you are confidence and excellent service for after-sales, then welcome to be our agents or

distributors all over the world.

Q7:What’s your payment?

T/T,D/P,L/C,Western Union., etc

Q8:What’s the delivery?

“TIME IS GOLD” for you and for us, so we have professional team work and production line can

make nice quality in short time.

Service:

1. Pre-Sales Service:We have professional designers to meet the different requirement.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.
